Rook

Rook架构设计

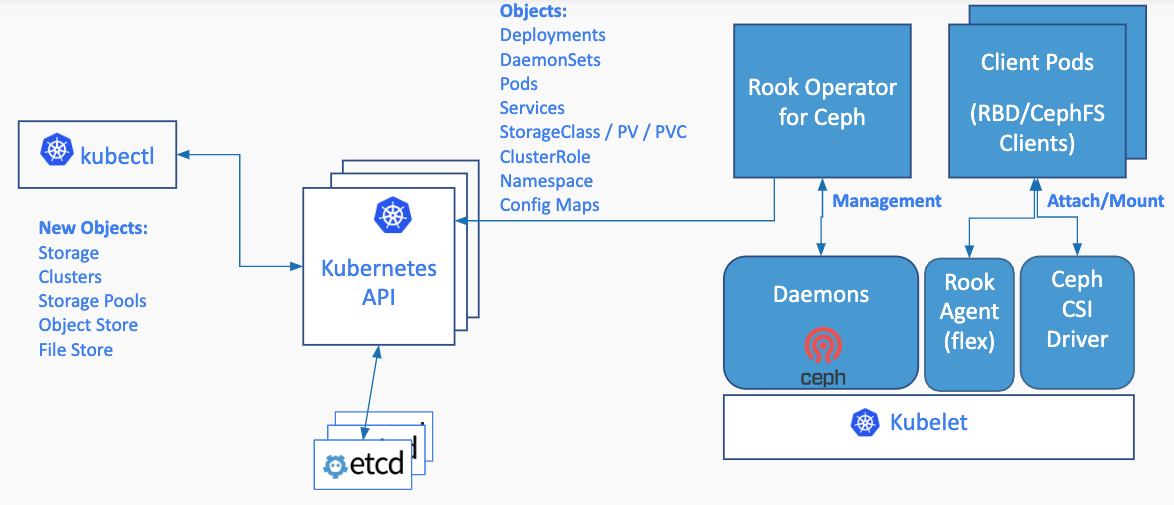

Rook使Ceph存储系统能够使用Kubernetes原生资源对象在Kubernetes上运行。 下图说明了Ceph Rook如何与Kubernetes集成:

通过在Kubernetes集群中运行CephKubernetes应用可以挂载Rook管理的块设备和文件系统, 或者可以使用S3/swiftapi进行对象存储。 Rook operator自动配置存储组件并监视集群,以确保存储保持可用和正常。

Rook operator是一个简单的容器,它拥有引导和监视存储集群所需的所有东西。 operator将启动和监控Ceph monitor pods, Ceph OSD守护进程提供RADOS存储,以及启动和管理其他Ceph守护进程。 operator通过初始化运行服务所需的pods和其他组件来管理池、对象存储(S3/Swift)和文件系统的crd

operator将监视存储守护程序,以确保群集正常运行。Ceph-mons将在必要时启动或故障转移, 并随着集群的增长或收缩进行其他调整。operator还将监视api服务请求的所需状态更改,并应用更改。

Rook operator还初始化消耗存储所需的代理。Rook会自动配置Ceph CSI驱动程序,将存储装载到pod中。

rook/ceph镜像包括管理集群所需的所有工具。许多Ceph概念,如放置组和crush map是隐藏的。 Rook在物理资源、池、卷、文件系统和存储桶方面为管理员创建了一个非常简化的用户体验。同时,当需要Ceph工具时,可以应用高级配置

Rook基于golang实现。Ceph是基于C++中实现的,其中数据路径是高度优化的。二者是最好的组合。

Rook实践

Rook管理ceph-基础版

环境说明

k8s集群信息

[root@node1 ~]# kubectl get nodes
NAME    STATUS     ROLES           AGE    VERSION
node1   Ready      master,worker   2d4h   v1.18.6
node2   Ready      master,worker   2d4h   v1.18.6
node3   Ready      master,worker   2d4h   v1.18.6

内核版本

5.4.108-1.el7.elrepo.x86_64

磁盘设备

node1-node3各挂载一块100G磁盘,设备路径为/dev/sdb

依赖说明

要配置Ceph存储群集,至少需要以下一个本地存储选项:

  • 原始设备(没有分区或格式化文件系统)
  • 原始分区(无格式化文件系统)
  • k8s存储类提供的块模式PV

安装LVM

在以下场景中,Ceph OSD依赖于LVM

  • OSD是在原始设备或分区上创建的
  • 如果启用了加密(encryptedDevice: true)
  • 指定了元数据设备

在以下情况下,OSD不需要LVM

  • 使用storageClassDeviceSetsPVC上创建OSD

如果您的场景需要LVM,那么LVM需要在运行OSD的主机上可用。有些Linux发行版不附带lvm2包。 要运行Ceph OSDsk8s群集中的所有存储节点上都需要此包。如果没有这个包, 即使Rook能够成功地创建Ceph OSD,当一个节点重新启动时,在重新启动的节点上运行的OSD pods将无法启动。 请使用Linux发行版的包管理器安装LVM。例如:

yum install -y lvm2

操作系统内核

  • RBD类型

Ceph需要一个用RBD模块构建的Linux内核。 许多Linux发行版都有这个模块,但不是所有发行版都有。例如,GKE容器优化OSCOS)没有RBD

您可以通过运行modprobe rbd来测试Kubernetes节点

  • cephfs类型

如果要从Ceph共享文件系统(CephFS)创建卷,建议的最低内核版本为4.17

如果内核版本低于4.17,则不会强制执行所请求的PVC大小。存储配额将仅在较新的内核上强制执行。

开启准入控制器

准入控制器在对象持久化之前拦截到Kubernetes API服务器的请求,但在对请求进行身份验证和授权之后。

建议启用Rook准入控制器,以提供额外级别的验证,以确保Rook是使用自定义资源(CR)设置正确配置的。

下载ceph配置声明文件上传至k8s节点/root下,解压

tar zxvf v1.6.6.tar.gz
mv rook-1.6.6 rook

可利用助手脚本自动配置部署Rook准入控制器,这个脚本将帮助我们完成以下任务:

  • 创建自签名证书
  • 为证书创建证书签名请求(CSR),并从Kubernetes集群获得批准
  • 将这些证书存储为Kubernetes Secret
  • 创建Service AccountClusterRoleClusterRoleBindings,以便以最低权限运行webhook服务
  • 创建ValidatingWebhookConfig并使用来自集群的适当值填充CA bundle
cd rook/
kubectl create -f cluster/examples/kubernetes/ceph/crds.yaml -f cluster/examples/kubernetes/ceph/common.yaml

离线环境下,手动下载cert-manager.yaml 上传至/root/rook/下,替换文件路径

sed -i "s#https://github.com/jetstack/cert-manager/releases/download/\$CERT_VERSION/#rook/#g" \
tests/scripts/deploy_admission_controller.sh

调整/root/rook/cert-manager.yaml文件内引用镜像tag(替换为可访问的镜像tag)

[root@node1 rook]# cat cert-manager.yaml |grep 'image:'
        image: harbor.chs.neusoft.com/ceph-csi/jetstack/cert-manager-cainjector:v1.2.0
        image: harbor.chs.neusoft.com/ceph-csi/jetstack/cert-manager-controller:v1.2.0
        image: harbor.chs.neusoft.com/ceph-csi/jetstack/cert-manager-webhook:v1.2.0

发布

tests/scripts/deploy_admission_controller.sh

创建rook operator

调整/root/rook/cluster/examples/kubernetes/ceph/operator.yaml文件内引用镜像tag(替换为可访问的镜像tag)

[root@node1 rook]# grep "image:" cluster/examples/kubernetes/ceph/operator.yaml
          image: rook/ceph:v1.6.6

调整以下内容,并放开注释

# ROOK_CSI_CEPH_IMAGE: "quay.io/cephcsi/cephcsi:v3.3.1"

# ROOK_CSI_REGISTRAR_IMAGE: "k8s.gcr.io/sig-storage/csi-node-driver-registrar:v2.2.0"
# ROOK_CSI_RESIZER_IMAGE: "k8s.gcr.io/sig-storage/csi-resizer:v1.2.0"
# ROOK_CSI_PROVISIONER_IMAGE: "k8s.gcr.io/sig-storage/csi-provisioner:v2.2.2"
# ROOK_CSI_SNAPSHOTTER_IMAGE: "k8s.gcr.io/sig-storage/csi-snapshotter:v4.1.1"
# ROOK_CSI_ATTACHER_IMAGE: "k8s.gcr.io/sig-storage/csi-attacher:v3.2.1"

发布

kubectl apply -f cluster/examples/kubernetes/ceph/operator.yaml

查看状态

[root@node1 rook]# kubectl get pod -n rook-ceph
NAME                                             READY   STATUS    RESTARTS   AGE
rook-ceph-admission-controller-549f58dd9-rs8qs   1/1     Running   0          86s
rook-ceph-admission-controller-549f58dd9-tmfnr   1/1     Running   0          86s
rook-ceph-operator-869777bc74-dtv2h              1/1     Running   0          2m9s

此时,operator将自动启动准入控制器部署,而Webhook将开始拦截对Rook资源的请求。

创建ceph集群

/root/rook/cluster/examples/kubernetes/ceph/cluster.yaml

调整镜像tag

ceph/ceph:v15.2.13

配置ceph数据盘

修改以下配置,其他默认

  storage: # cluster level storage configuration and selection
    useAllNodes: true
    nodes:
    - name: "node1"
      devices: # specific devices to use for storage can be specified for each node
      - name: "sdb"
    - name: "node2"
      devices: # specific devices to use for storage can be specified for each node
      - name: "sdb"
    - name: "node3"
      devices: # specific devices to use for storage can be specified for each node
      - name: "sdb"

发布

kubectl apply -f /root/rook/cluster/examples/kubernetes/ceph/cluster.yaml

查看状态

查看pod

[root@node1 ceph]# kubectl get pod -n rook-ceph
NAME                                             READY   STATUS    RESTARTS   AGE
csi-cephfsplugin-jsw67                           3/3     Running   0          55s
csi-cephfsplugin-provisioner-6667846fc9-g4jj2    6/6     Running   0          52s
csi-cephfsplugin-provisioner-6667846fc9-wmzc7    6/6     Running   0          53s
csi-cephfsplugin-tb4mh                           3/3     Running   0          55s
csi-cephfsplugin-xvk4s                           3/3     Running   0          55s
csi-rbdplugin-gl4tx                              3/3     Running   0          57s
csi-rbdplugin-provisioner-7bf5687dcd-4rsst       6/6     Running   0          57s
csi-rbdplugin-provisioner-7bf5687dcd-7hf94       6/6     Running   0          57s
csi-rbdplugin-x57s2                              3/3     Running   0          57s
csi-rbdplugin-zs64m                              3/3     Running   0          57s
rook-ceph-admission-controller-549f58dd9-rs8qs   1/1     Running   0          18h
rook-ceph-admission-controller-549f58dd9-tmfnr   1/1     Running   0          18h
rook-ceph-mon-a-canary-6d7bf84b9c-pjmd4          1/1     Running   0          50s
rook-ceph-mon-b-canary-5b647bf496-pdvhj          1/1     Running   0          50s
rook-ceph-mon-c-canary-54d67bb847-8pb7x          1/1     Running   0          49s
rook-ceph-operator-869777bc74-dtv2h              1/1     Running   0          18h

查看集群状态

kubectl -n rook-ceph get CephCluster -o yaml

创建ceph工具箱

相当于ceph客户端,用于与ceph集群交互

创建发布

离线环境注意替换镜像tag(rook/ceph:v1.6.6)

cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: rook-ceph-tools
  namespace: rook-ceph
  labels:
    app: rook-ceph-tools
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rook-ceph-tools
  template:
    metadata:
      labels:
        app: rook-ceph-tools
    spec:
      dnsPolicy: ClusterFirstWithHostNet
      containers:
      - name: rook-ceph-tools
        image: rook/ceph:v1.6.6
        command: ["/tini"]
        args: ["-g", "--", "/usr/local/bin/toolbox.sh"]
        imagePullPolicy: IfNotPresent
        env:
          - name: ROOK_CEPH_USERNAME
            valueFrom:
              secretKeyRef:
                name: rook-ceph-mon
                key: ceph-username
          - name: ROOK_CEPH_SECRET
            valueFrom:
              secretKeyRef:
                name: rook-ceph-mon
                key: ceph-secret
        volumeMounts:
          - mountPath: /etc/ceph
            name: ceph-config
          - name: mon-endpoint-volume
            mountPath: /etc/rook
      volumes:
        - name: mon-endpoint-volume
          configMap:
            name: rook-ceph-mon-endpoints
            items:
            - key: data
              path: mon-endpoints
        - name: ceph-config
          emptyDir: {}
      tolerations:
        - key: "node.kubernetes.io/unreachable"
          operator: "Exists"
          effect: "NoExecute"
          tolerationSeconds: 5
EOF

测试可用性

[root@node1 ceph]# kubectl -n rook-ceph exec -it deploy/rook-ceph-tools -- bash

创建块存储

创建块存储池

cat <<EOF | kubectl apply -f -
apiVersion: ceph.rook.io/v1
kind: CephBlockPool
metadata:
  name: rbd-pool
  namespace: rook-ceph # namespace:cluster
spec:
  failureDomain: host
  replicated:
    size: 3
    requireSafeReplicaSize: true
  parameters:
    compression_mode: none
  statusCheck:
    mirror:
      disabled: false
      interval: 60s
  # quota in bytes and/or objects, default value is 0 (unlimited)
  # see https://docs.ceph.com/en/latest/rados/operations/pools/#set-pool-quotas
  quotas:
    maxSize: "50Gi" # valid suffixes include k, M, G, T, P, E, Ki, Mi, Gi, Ti, Pi, Ei
    # maxObjects: 1000000000 # 1 billion objects
  # A key/value list of annotations
  annotations:
  #  key: value
EOF

创建块存储存储类

cat <<EOF | kubectl apply -f -
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
   name: rook-ceph-block
# Change "rook-ceph" provisioner prefix to match the operator namespace if needed
provisioner: rook-ceph.rbd.csi.ceph.com
parameters:
    # clusterID is the namespace where the rook cluster is running
    clusterID: rook-ceph
    # Ceph pool into which the RBD image shall be created
    pool: rbd-pool
    imageFormat: "2"
    imageFeatures: layering
    csi.storage.k8s.io/provisioner-secret-name: rook-csi-rbd-provisioner
    csi.storage.k8s.io/provisioner-secret-namespace: rook-ceph
    csi.storage.k8s.io/controller-expand-secret-name: rook-csi-rbd-provisioner
    csi.storage.k8s.io/controller-expand-secret-namespace: rook-ceph
    csi.storage.k8s.io/node-stage-secret-name: rook-csi-rbd-node
    csi.storage.k8s.io/node-stage-secret-namespace: rook-ceph
    csi.storage.k8s.io/fstype: ext4
# Delete the rbd volume when a PVC is deleted
reclaimPolicy: Delete
EOF

查看存储类

[root@node1 ceph]# kubectl get sc rook-ceph-block
NAME                         PROVISIONER                  RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
rook-ceph-block              rook-ceph.rbd.csi.ceph.com   Delete          Immediate              false                  3s

验证可用性

cat <<EOF | kubectl apply -f -
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: ceph-block-pvc
spec:
  storageClassName: rook-ceph-block
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5G
---
apiVersion: v1
kind: Pod
metadata:
  name: ceph-block-pod
spec:
  volumes:
  - name: ceph-rbd-storage
    persistentVolumeClaim:
      claimName: ceph-block-pvc
  containers:
  - name: hello-container
    image: busybox
    command:
       - sh
       - -c
       - 'while true; do echo "`date` [`hostname`] Hello from Ceph RBD PV." >> /mnt/store/greet.txt; sleep $(($RANDOM % 5 + 300)); done'
    volumeMounts:
    - mountPath: /mnt/store
      name: ceph-rbd-storage
EOF

查看pvc状态

[root@node1 kubernetes]# kubectl get pvc
NAME             STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS      AGE
mysql-pv-claim   Bound    pvc-c1d19cfe-5028-43de-8cbd-405af96eb66c   20Gi       RWO            rook-ceph-block   93s

查看pod状态

[root@node1 ceph]# kubectl get pod
NAME             READY   STATUS    RESTARTS   AGE
ceph-block-pod   1/1     Running   0          13s

查看写入内容是否正确

[root@node1 ceph]# kubectl exec ceph-block-pod -- cat /mnt/store/greet.txt
Tue Jun 29 16:20:07 CST 2021 [node1] Hello from Ceph RBD PV.

创建共享存储

一个共享的文件系统支持多pod读/写,这对于可以使用共享文件系统进行集群的应用程序可能很有用。

创建文件系统CRD

cat <<EOF | kubectl apply -f -
---
apiVersion: ceph.rook.io/v1
kind: CephFilesystem
metadata:
  name: myfs
  namespace: rook-ceph
spec:
  metadataPool:
    failureDomain: host
    replicated:
      size: 3
  dataPools:
    - failureDomain: host
      replicated:
        size: 3
  preserveFilesystemOnDelete: true
  metadataServer:
    activeCount: 1
    activeStandby: true
    # A key/value list of annotations
    annotations:
    #  key: value
    placement:
    #  nodeAffinity:
    #    requiredDuringSchedulingIgnoredDuringExecution:
    #      nodeSelectorTerms:
    #      - matchExpressions:
    #        - key: role
    #          operator: In
    #          values:
    #          - mds-node
    #  tolerations:
    #  - key: mds-node
    #    operator: Exists
    #  podAffinity:
    #  podAntiAffinity:
    #  topologySpreadConstraints:
    resources:
    #  limits:
    #    cpu: "500m"
    #    memory: "1024Mi"
    #  requests:
    #    cpu: "500m"
    #    memory: "1024Mi"
EOF

查看ceph mds服务状态

[root@node1 ceph]# kubectl -n rook-ceph get pod -l app=rook-ceph-mds
NAME                                    READY   STATUS    RESTARTS   AGE
rook-ceph-mds-myfs-a-5c9d84c7f8-z4csx   1/1     Running   0          48s
rook-ceph-mds-myfs-b-5485989ff8-zl7g2   1/1     Running   0          47s

查看池

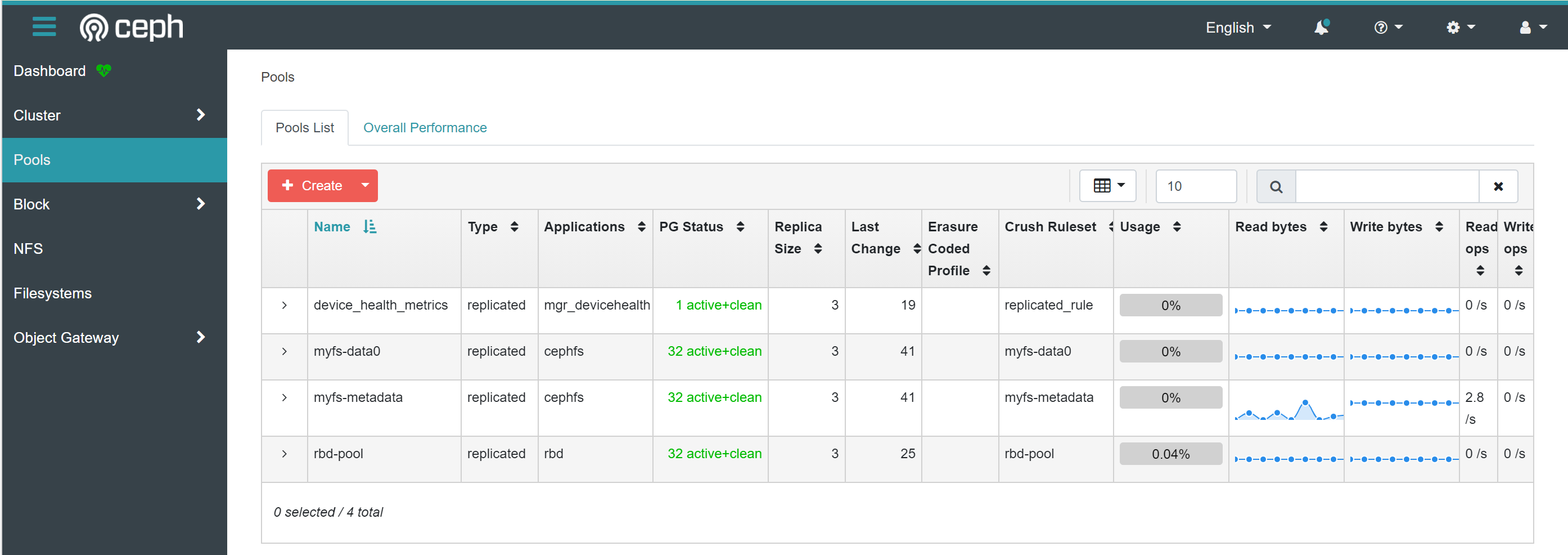

可以看到池myfs-data0(数据池)与myfs-metadata(元数据池)已自动创建

[root@node1 ceph]# kubectl -n rook-ceph exec deploy/rook-ceph-tools -- ceph df
--- RAW STORAGE ---
CLASS  SIZE     AVAIL    USED     RAW USED  %RAW USED
hdd    300 GiB  297 GiB  137 MiB   3.1 GiB       1.04
TOTAL  300 GiB  297 GiB  137 MiB   3.1 GiB       1.04

--- POOLS ---
POOL                   ID  PGS  STORED   OBJECTS  USED     %USED  MAX AVAIL
device_health_metrics   1    1      0 B        0      0 B      0     94 GiB
rbd-pool                2   32   31 MiB      154  119 MiB   0.04     94 GiB
myfs-metadata           3   32  2.2 KiB       22  1.5 MiB      0     94 GiB
myfs-data0              4   32      0 B        0      0 B      0     94 GiB

创建存储类(sc

cat <<EOF | kubectl apply -f -
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: rook-cephfs
# Change "rook-ceph" provisioner prefix to match the operator namespace if needed
provisioner: rook-ceph.cephfs.csi.ceph.com
parameters:
  # clusterID is the namespace where operator is deployed.
  clusterID: rook-ceph

  # CephFS filesystem name into which the volume shall be created
  fsName: myfs

  # Ceph pool into which the volume shall be created
  # Required for provisionVolume: "true"
  pool: myfs-data0

  # The secrets contain Ceph admin credentials. These are generated automatically by the operator
  # in the same namespace as the cluster.
  csi.storage.k8s.io/provisioner-secret-name: rook-csi-cephfs-provisioner
  csi.storage.k8s.io/provisioner-secret-namespace: rook-ceph
  csi.storage.k8s.io/controller-expand-secret-name: rook-csi-cephfs-provisioner
  csi.storage.k8s.io/controller-expand-secret-namespace: rook-ceph
  csi.storage.k8s.io/node-stage-secret-name: rook-csi-cephfs-node
  csi.storage.k8s.io/node-stage-secret-namespace: rook-ceph
reclaimPolicy: Delete
EOF

查看已有存储类

[root@node1 ceph]# kubectl get sc
NAME                         PROVISIONER                     RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
openebs-hostpath (default)   openebs.io/local                Delete          WaitForFirstConsumer   false                  3d4h
rook-ceph-block              rook-ceph.rbd.csi.ceph.com      Delete          Immediate              false                  3h39m
rook-cephfs                  rook-ceph.cephfs.csi.ceph.com   Delete          Immediate              false                  4s

测试可用性

离线环境注意替换镜像tag

cat > kube-registry.yaml <<EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: cephfs-pvc
  namespace: kube-system
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 1Gi
  storageClassName: rook-cephfs
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kube-registry
  namespace: kube-system
  labels:
    k8s-app: kube-registry
    kubernetes.io/cluster-service: "true"
spec:
  replicas: 3
  selector:
    matchLabels:
      k8s-app: kube-registry
  template:
    metadata:
      labels:
        k8s-app: kube-registry
        kubernetes.io/cluster-service: "true"
    spec:
      containers:
      - name: registry
        image: registry:2
        imagePullPolicy: Always
        resources:
          limits:
            cpu: 100m
            memory: 100Mi
        env:
        # Configuration reference: https://docs.docker.com/registry/configuration/
        - name: REGISTRY_HTTP_ADDR
          value: :5000
        - name: REGISTRY_HTTP_SECRET
          value: "Ple4seCh4ngeThisN0tAVerySecretV4lue"
        - name: REGISTRY_STORAGE_FILESYSTEM_ROOTDIRECTORY
          value: /var/lib/registry
        volumeMounts:
        - name: image-store
          mountPath: /var/lib/registry
        ports:
        - containerPort: 5000
          name: registry
          protocol: TCP
        livenessProbe:
          httpGet:
            path: /
            port: registry
        readinessProbe:
          httpGet:
            path: /
            port: registry
      volumes:
      - name: image-store
        persistentVolumeClaim:
          claimName: cephfs-pvc
          readOnly: false
EOF

发布

kubectl apply -f kube-registry.yaml

查看运行状态

[root@node1 ceph]# kubectl get pod -A|grep regi
kube-system                    kube-registry-64f97cd5d6-f6hfz                                    1/1     Running                      0          7m20s
kube-system                    kube-registry-64f97cd5d6-l5h5m                                    1/1     Running                      0          7m20s
kube-system                    kube-registry-64f97cd5d6-nrvkc                                    1/1     Running                      0          7m20s

开启控制面板

安装上述步骤搭建ceph集群,自带dashboard

查看服务信息

[root@node1 ceph]# kubectl -n rook-ceph get service
NAME                             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
csi-cephfsplugin-metrics         ClusterIP   10.233.41.137   <none>        8080/TCP,8081/TCP   80m
csi-rbdplugin-metrics            ClusterIP   10.233.53.251   <none>        8080/TCP,8081/TCP   80m
rook-ceph-admission-controller   ClusterIP   10.233.18.242   <none>        443/TCP             19h
rook-ceph-mgr                    ClusterIP   10.233.32.164   <none>        9283/TCP            77m
rook-ceph-mgr-dashboard          ClusterIP   10.233.38.102   <none>        8443/TCP            77m
rook-ceph-mon-a                  ClusterIP   10.233.35.191   <none>        6789/TCP,3300/TCP   79m
rook-ceph-mon-b                  ClusterIP   10.233.39.246   <none>        6789/TCP,3300/TCP   78m
rook-ceph-mon-c                  ClusterIP   10.233.30.204   <none>        6789/TCP,3300/TCP   78m

创建NodePort类型服务

cat > /root/rook/cluster/examples/kubernetes/ceph/dashboard-external-https.yaml <<EOF
---
apiVersion: v1
kind: Service
metadata:
  name: rook-ceph-mgr-dashboard-external-https
  namespace: rook-ceph
  labels:
    app: rook-ceph-mgr
    rook_cluster: rook-ceph
spec:
  ports:
  - name: dashboard
    port: 8443
    protocol: TCP
    targetPort: 8443
  selector:
    app: rook-ceph-mgr
    rook_cluster: rook-ceph
  sessionAffinity: None
  type: NodePort
EOF

发布

kubectl apply -f /root/rook/cluster/examples/kubernetes/ceph/dashboard-external-https.yaml

获取登录信息

登录地址(http://节点IP:32445

[root@node1 ceph]# kubectl get svc rook-ceph-mgr-dashboard-external-https -n rook-ceph
NAME                                     TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE
rook-ceph-mgr-dashboard-external-https   NodePort   10.233.39.95   <none>        8443:32445/TCP   21s

登录口令

kubectl -n rook-ceph get secret rook-ceph-dashboard-password -o jsonpath="{['data']['password']}" | base64 --decode && echo

查看控制面板

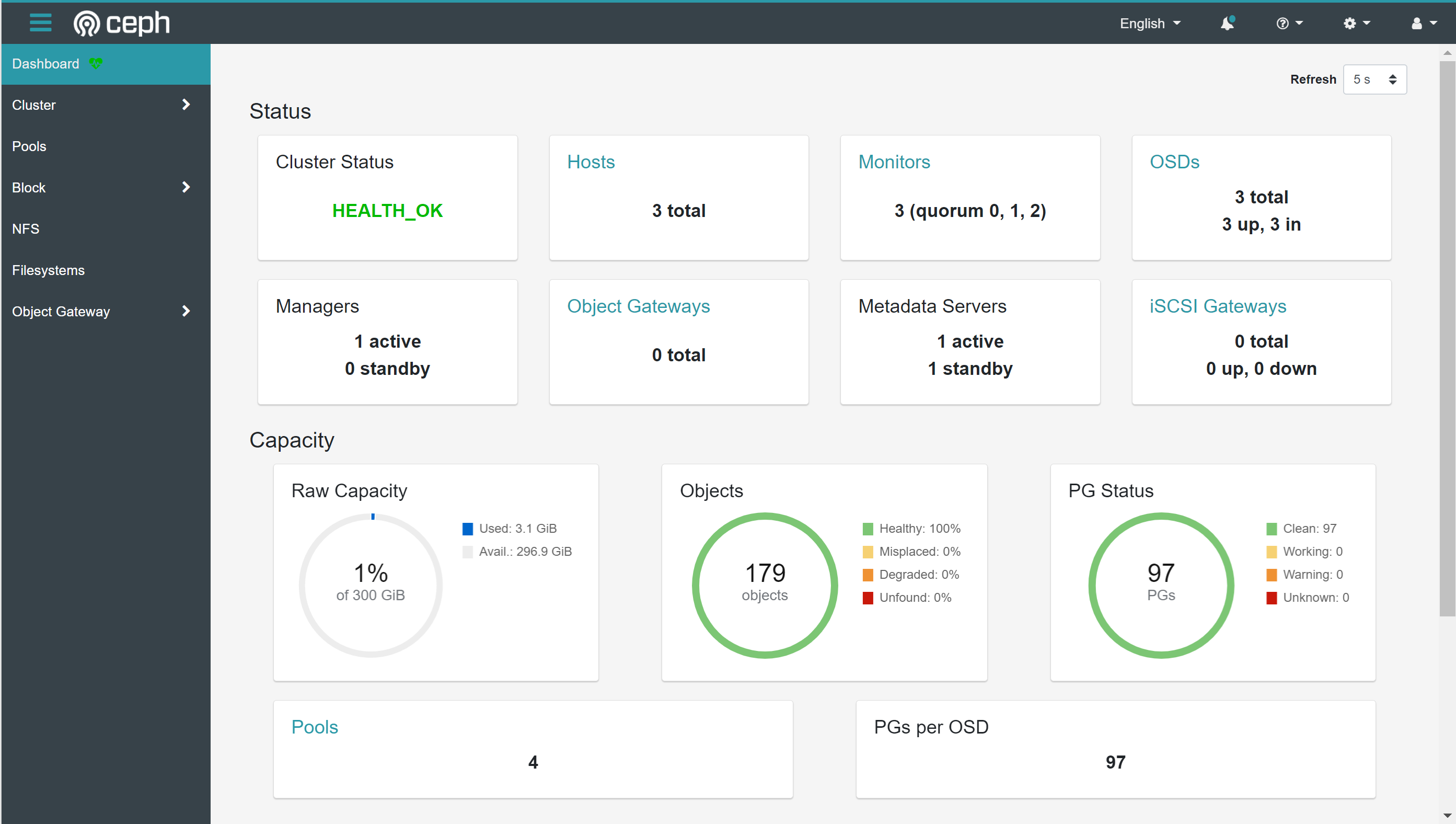

主页包含集群状态、存储容量、存储池等

存储池信息

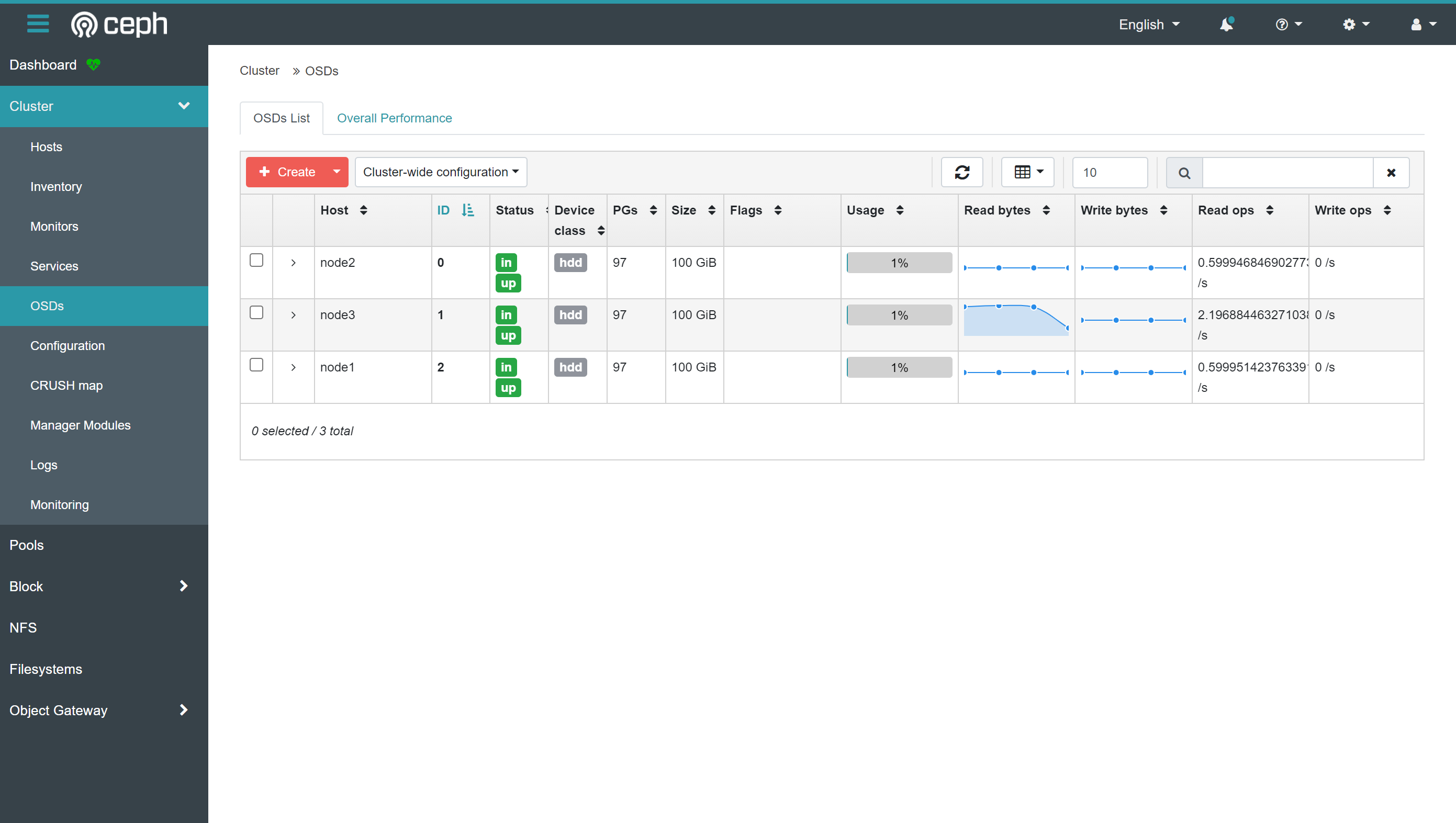

存储osd信息

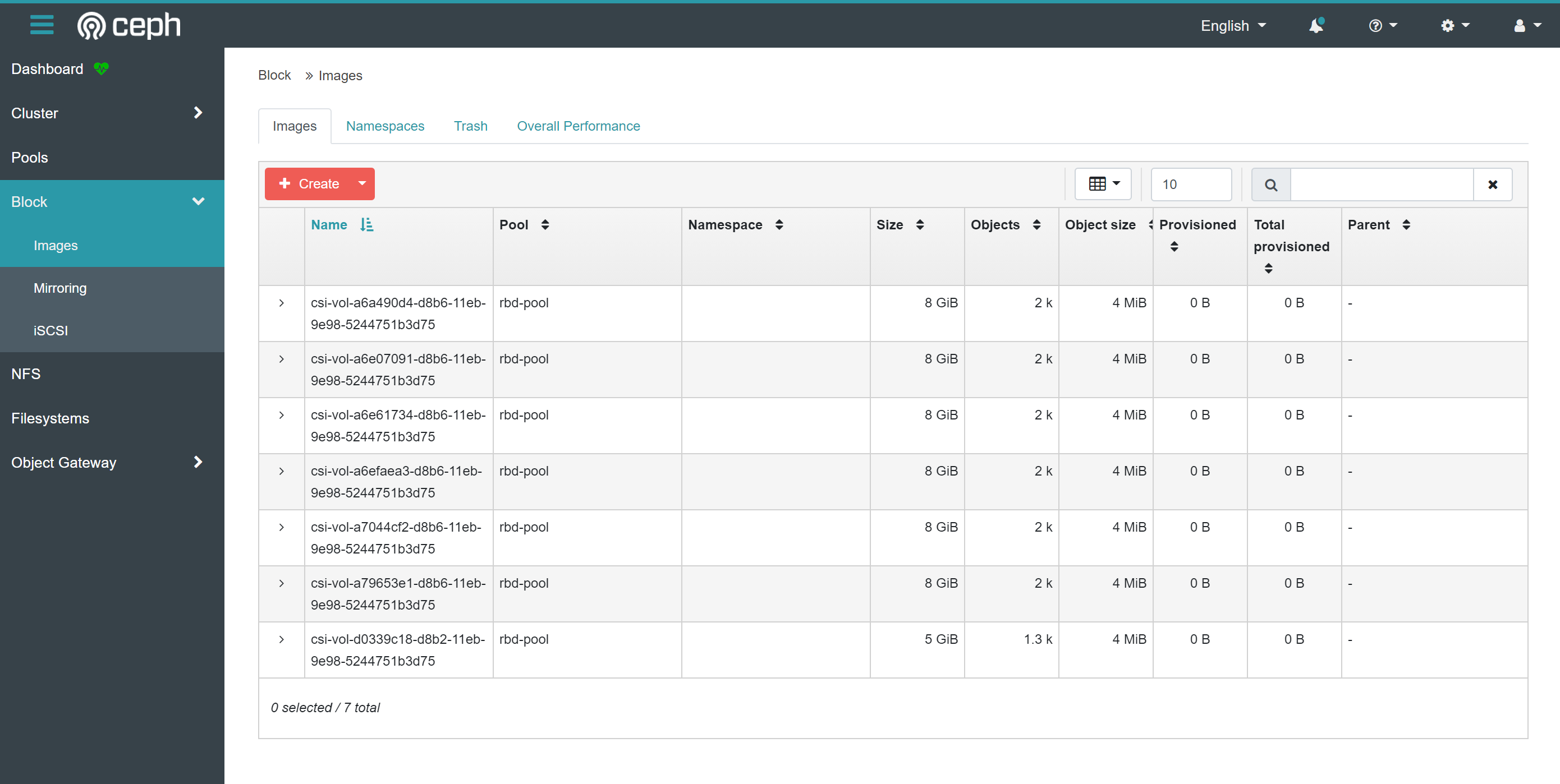

块存储信息

文件系统信息

经过上述实践,我们发现在现有k8s集群搭建一套ceph存储只要满足以下两点即可:

  • 内核高于4.17
  • 未被格式化分区的存储设备

整个部署流程对比非容器化部署更容易上手,利用k8s天生优势,保证了存储服务的高可用性。

Copyright © weiliang 2021 all right reserved,powered by Gitbook本书发布时间: 2024-04-22 16:03:41

results matching ""

    No results matching ""
