启动证书管理器

概述

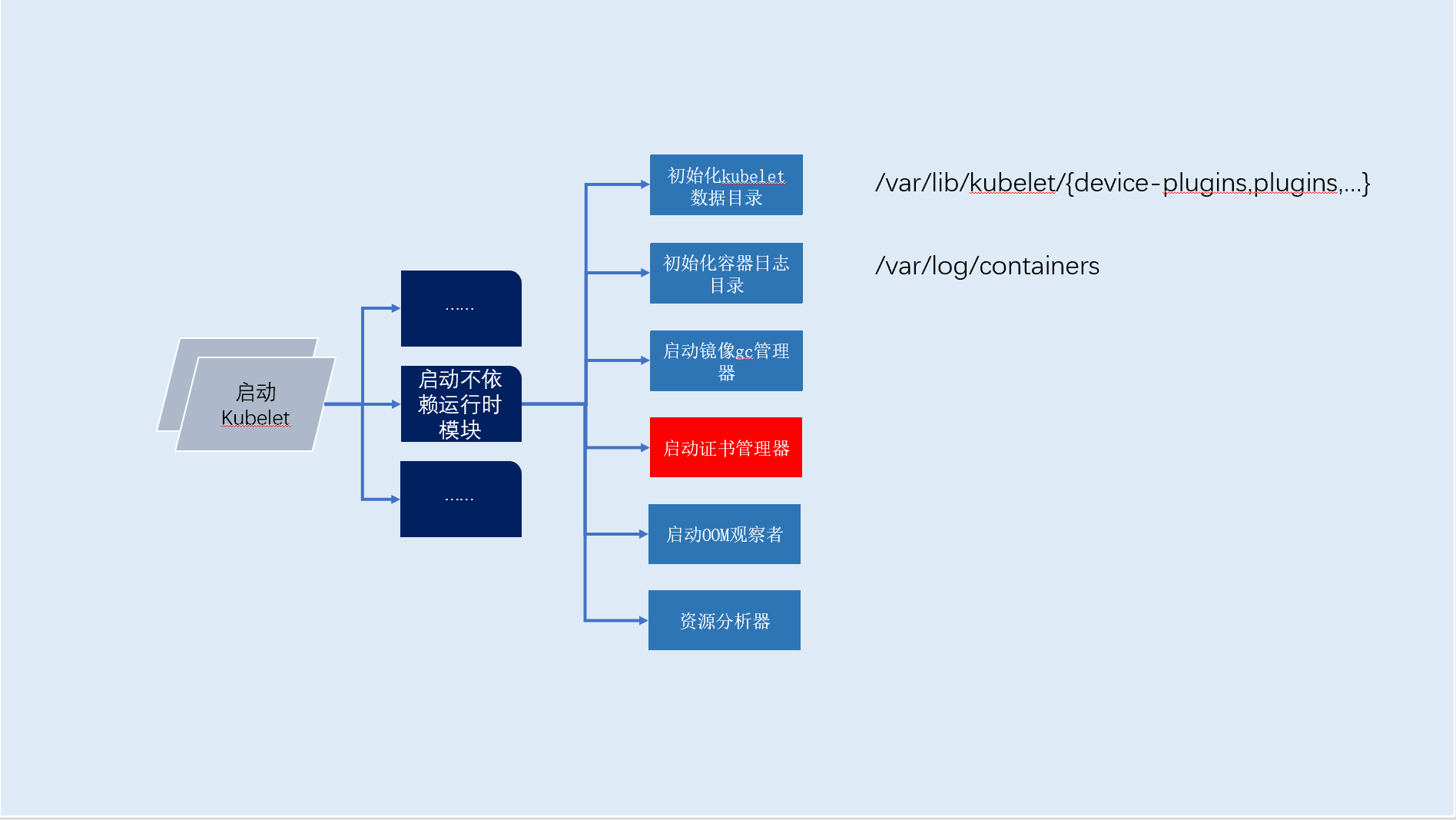

启动阶段如下图（红色部分）

证书管理器是做什么的？

当证书到期时，通过向kube-apiserver请求新证书，自动轮转kubelet客户端证书 。

关联启动配置/标识

建议通过配置文件（一般为：/var/lib/kubelet/config.yaml）添加rotateCertificates: true项开启

kubelet证书目录（--cert-dir指定）

$ pwd
/var/lib/kubelet/pki
$ ls
kubelet-client-2021-08-23-16-32-25.pem  kubelet-client-current.pem  kubelet.crt  kubelet.key

解析

流程解析

源码实现

kubernetes\vendor\k8s.io\client-go\util\certificate\certificate_manager.go

// Start will start the background work of rotating the certificates.
func (m *manager) Start() {
    // Certificate rotation depends on access to the API server certificate
    // signing API, so don't start the certificate manager if we don't have a
    // client.
    if m.clientFn == nil {
        klog.V(2).Infof("Certificate rotation is not enabled, no connection to the apiserver.")
        return
    }

    klog.V(2).Infof("Certificate rotation is enabled.")

    templateChanged := make(chan struct{})
    go wait.Until(func() {
        deadline := m.nextRotationDeadline()
        if sleepInterval := deadline.Sub(m.now()); sleepInterval > 0 {
            klog.V(2).Infof("Waiting %v for next certificate rotation", sleepInterval)

            timer := time.NewTimer(sleepInterval)
            defer timer.Stop()

            select {
            case <-timer.C:
                // unblock when deadline expires
            case <-templateChanged:
                _, lastRequestTemplate := m.getLastRequest()
                if reflect.DeepEqual(lastRequestTemplate, m.getTemplate()) {
                    // if the template now matches what we last requested, restart the rotation deadline loop
                    return
                }
                klog.V(2).Infof("Certificate template changed, rotating")
            }
        }

        // Don't enter rotateCerts and trigger backoff if we don't even have a template to request yet
        if m.getTemplate() == nil {
            return
        }

        backoff := wait.Backoff{
            Duration: 2 * time.Second,
            Factor:   2,
            Jitter:   0.1,
            Steps:    5,
        }
        if err := wait.ExponentialBackoff(backoff, m.rotateCerts); err != nil {
            utilruntime.HandleError(fmt.Errorf("Reached backoff limit, still unable to rotate certs: %v", err))
            wait.PollInfinite(32*time.Second, m.rotateCerts)
        }
    }, time.Second, m.stopCh)

    if m.dynamicTemplate {
        go wait.Until(func() {
            // check if the current template matches what we last requested
            lastRequestCancel, lastRequestTemplate := m.getLastRequest()

            if !m.certSatisfiesTemplate() && !reflect.DeepEqual(lastRequestTemplate, m.getTemplate()) {
                // if the template is different, queue up an interrupt of the rotation deadline loop.
                // if we've requested a CSR that matches the new template by the time the interrupt is handled, the interrupt is disregarded.
                if lastRequestCancel != nil {
                    // if we're currently waiting on a submitted request that no longer matches what we want, stop waiting
                    lastRequestCancel()
                }
                select {
                case templateChanged <- struct{}{}:
                case <-m.stopCh:
                }
            }
        }, time.Second, m.stopCh)
    }
}
